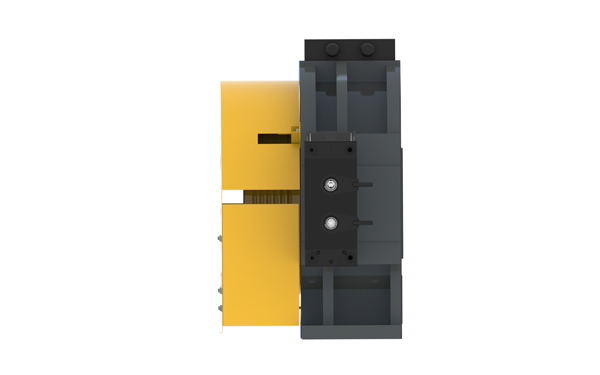

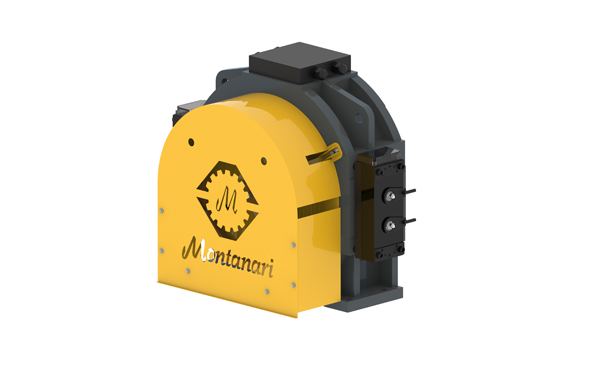

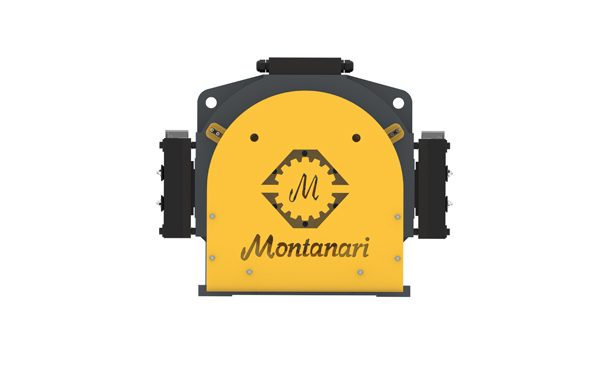

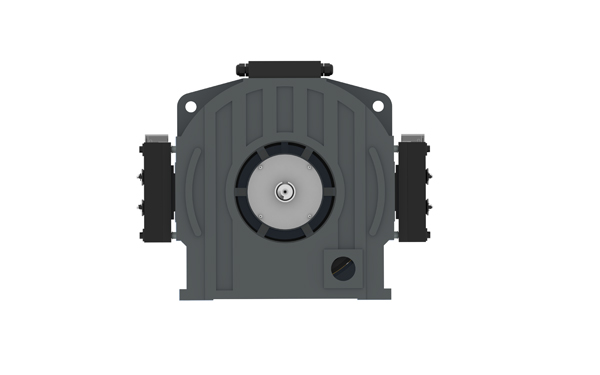

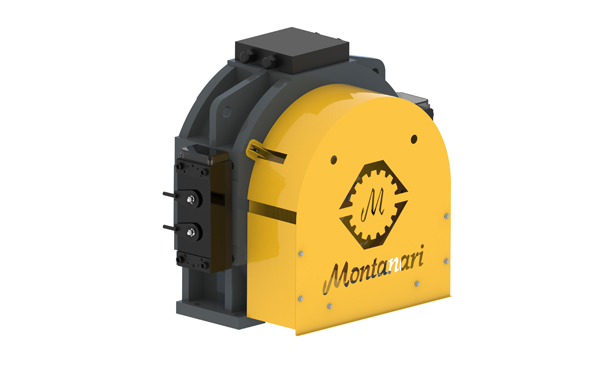

MF800 – FLAT GEARLESS

MF800 Montanari flat gearless with permanent magnets is suitable for MRL and space-constrained installations.

Key features:

• Torque moment: 2200 Nm - S5 - 40%ED
• For installations reporting a static load up to 8000 kg and load up to 2500 kg max roping 2:1 – 2,5 m/s.

Typical application:

• 2:1 – 2000 kg – traction pulley 520 mm
• 2:1 – 2500 kg – traction pulley 520 mm
• 1:1 – 1350 kg – traction pulley 520 mm
