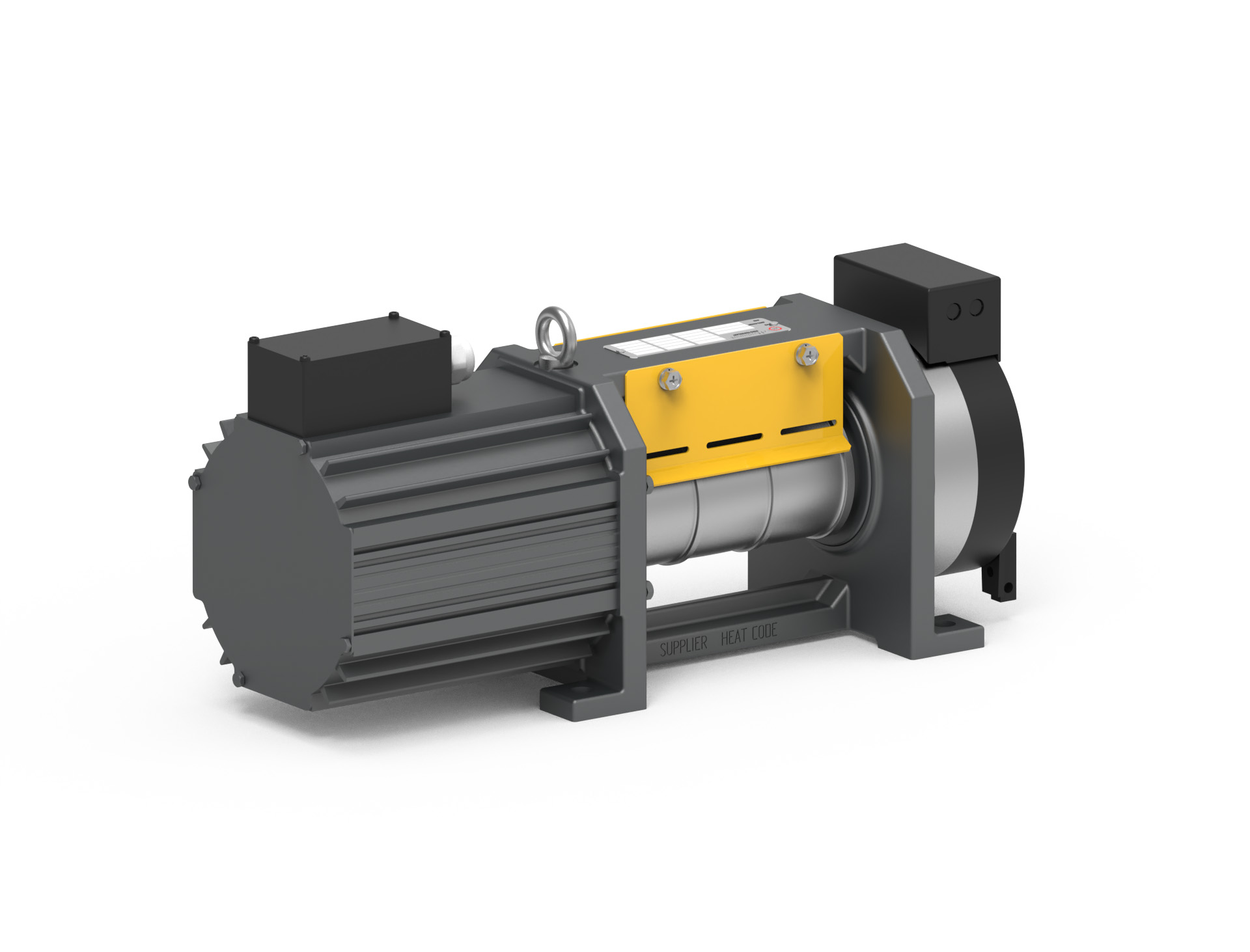

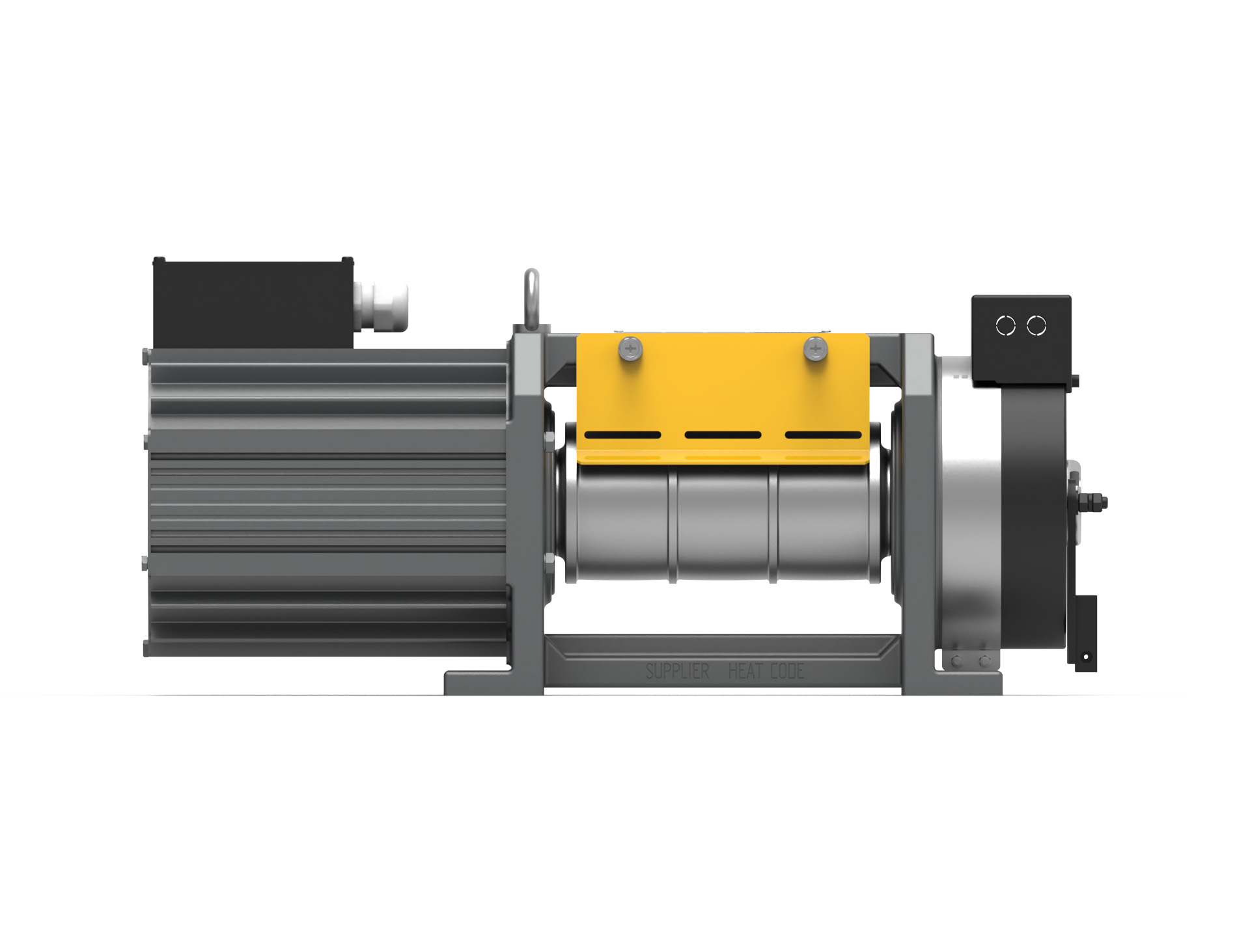

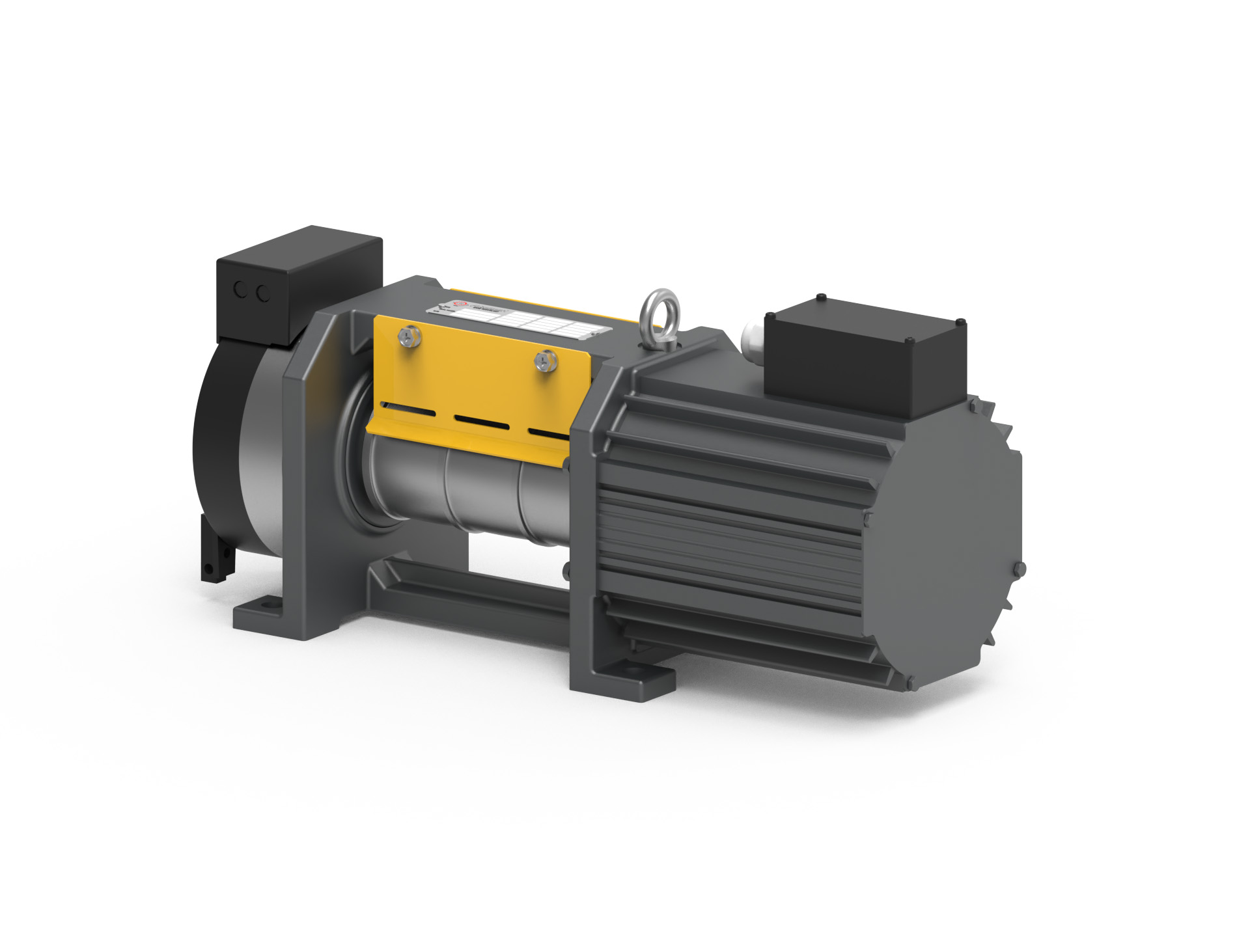

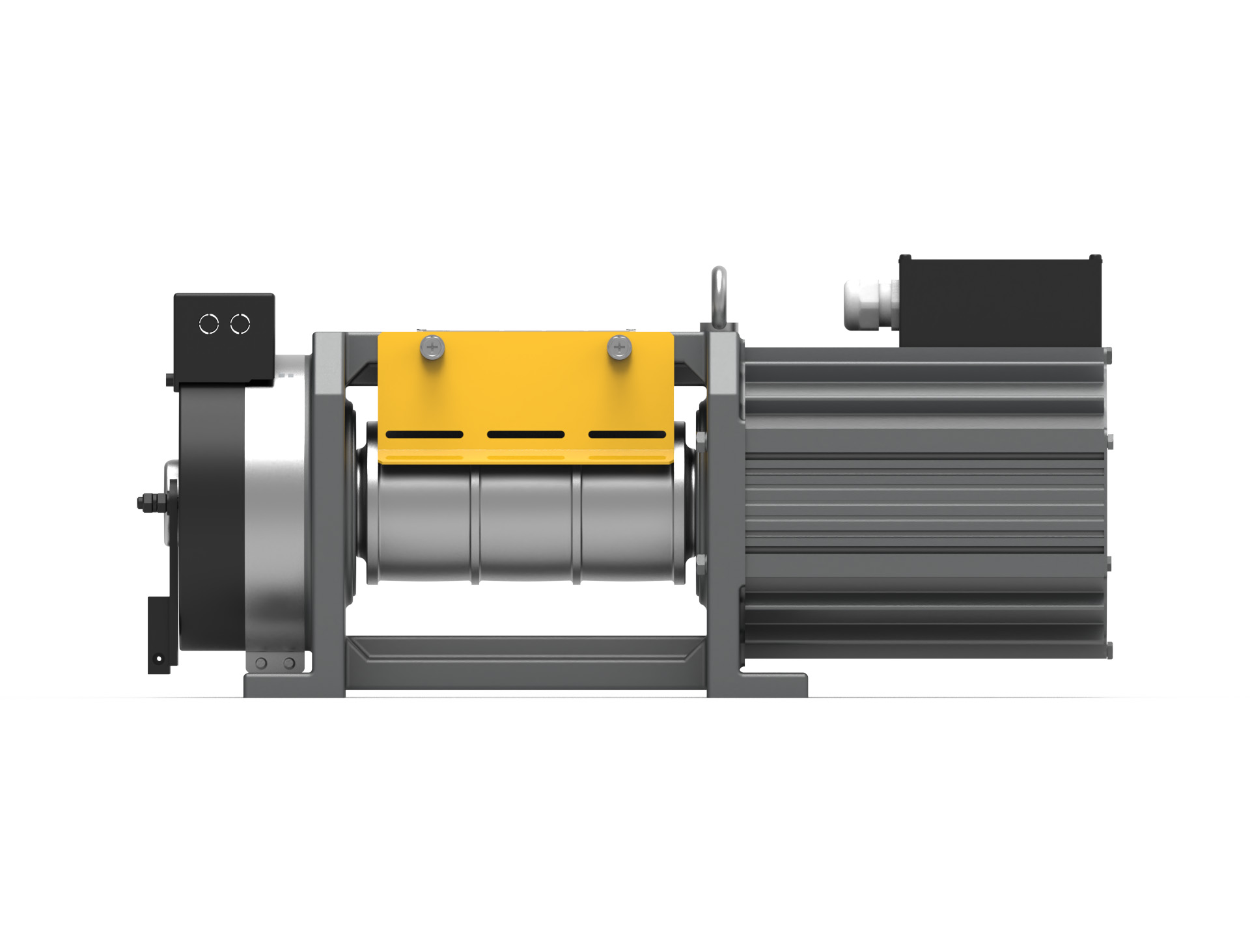

MDG63 – BELT GEARLESS
MDG63 - Montanari gearless is suitable for lift installations, lift platforms and Home Lift with belt roping system.
Key features:
- Torque moment: 104 Nm - S5 - 40%ED - 180 s/h.
- For installations reporting a static load up to 2.000 kg and load up to 630 kg and sheave 100 mm.
- Encoder cable included.
- Optional: brake levers, rescue system and power cable. (Special connector on request).
Short circuit torque is always higher than the rated one in order to perform emergency operations in complete safety.
Typical application:
- 2:1 – 630 kg – traction pulley 100 mm
- 1:1 – 400 kg – traction pulley 100 mm
Static load: 2000 kg
Capacity: 630 kg
Torque moment: 104 Nm – S5 – 40%ED – 180 s/h
Traction pulley:100 mm
Gearless weight: 120 kg
Voltage: 380 – 220V
Encoder:ERN1387 – ECN1313 – EI53C9.25 – TS5213N2531
