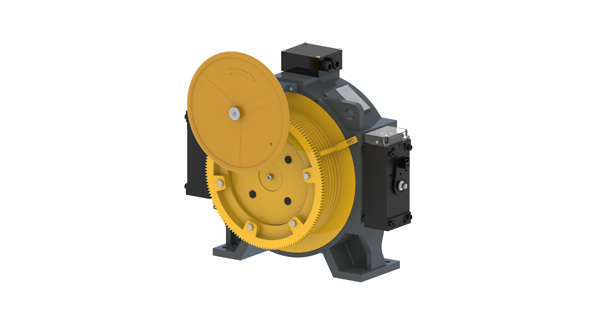

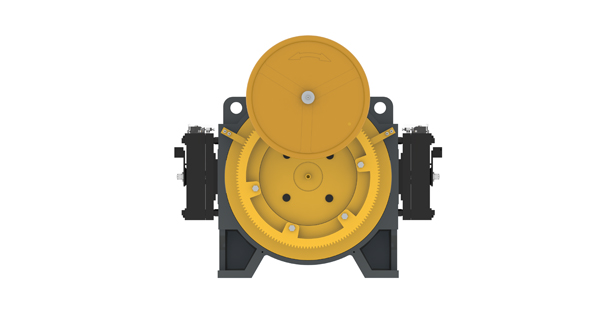

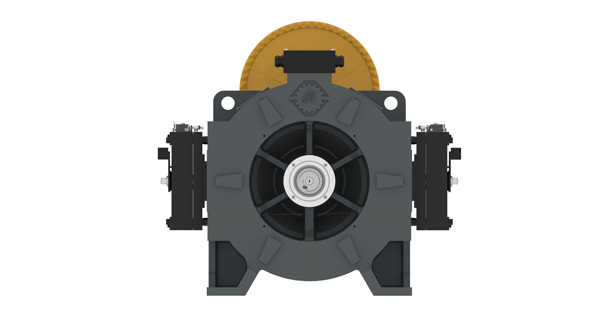

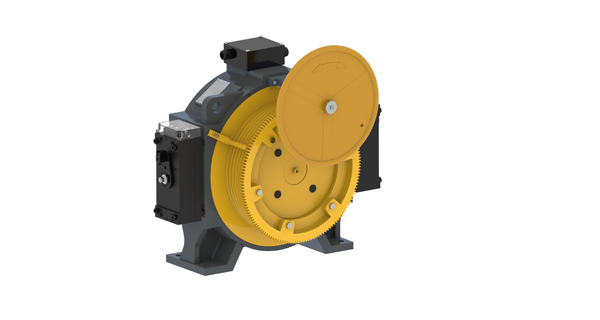

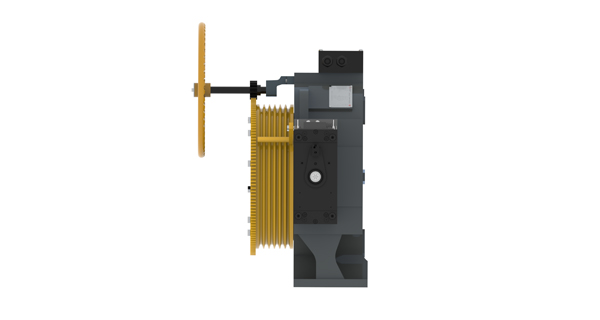

MF300 – FLAT GEARLESS

MF300 Montanari flat gearless with permanent magnets is suitable for MRL and space-constrained installations.

Key features:

  • Torque moment: 670 Nm - S5 - 40%ED
  • For installations reporting a static load up to 3000 kg and load up to 1000 kg max roping 2:1 – 2 m/s.
  • Optional: remote manual release - 7 or 10 m wire upon request

Typical application:

  • 2:1 – 800 kg – traction pulley 400 mm
  • 2:1 – 1000 kg – traction pulley 400 mm

FEATURES

Static load: 3000 kg

Capacity: 1000 kg

Torque moment: 670 Nm – S5 – 40%ED

Traction pulley: 400 mm

Gearless weight: 305 kg

Voltage: 380 V

Encoder: HAIDENHAIN1387
