MDQ16H

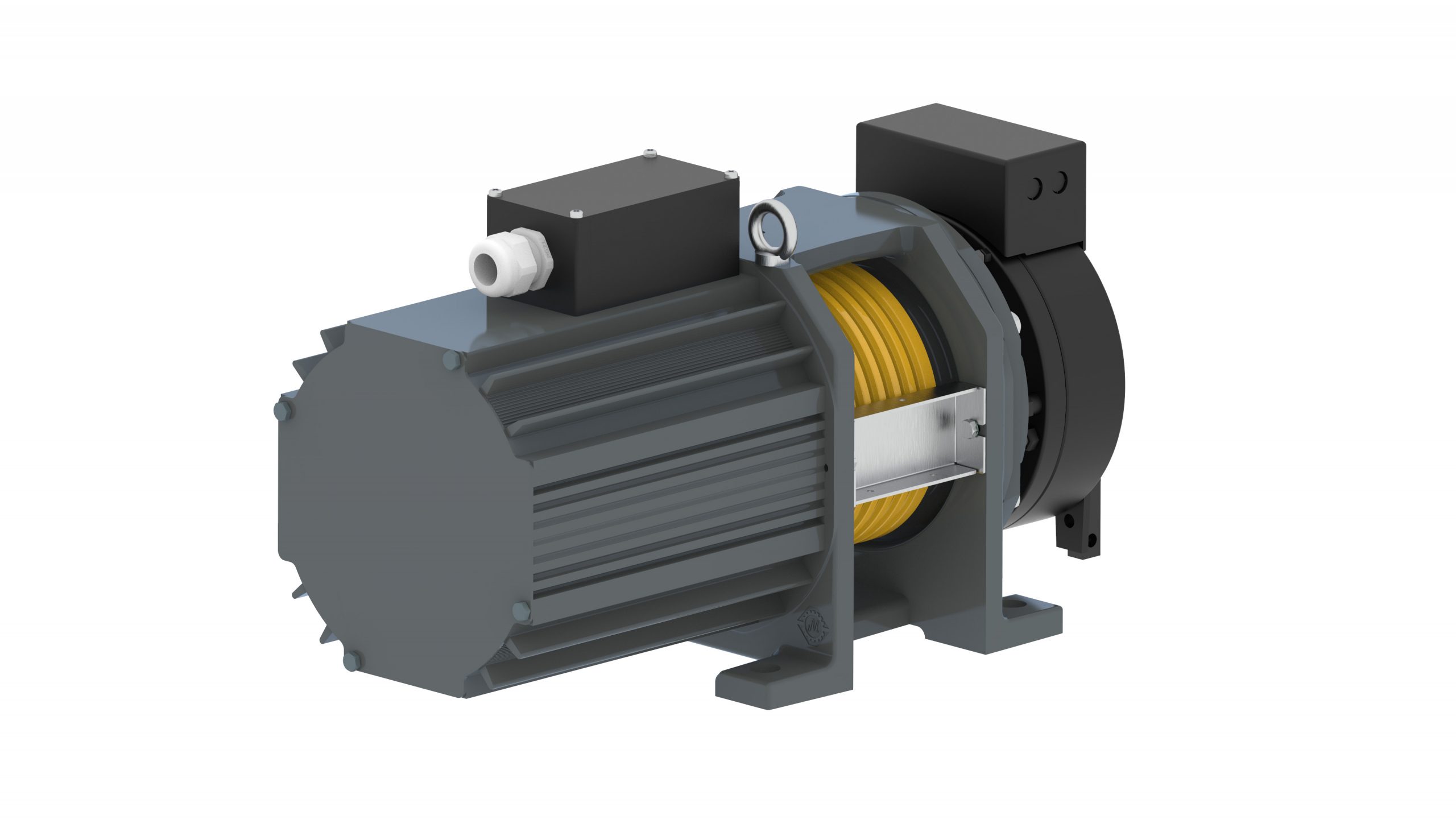

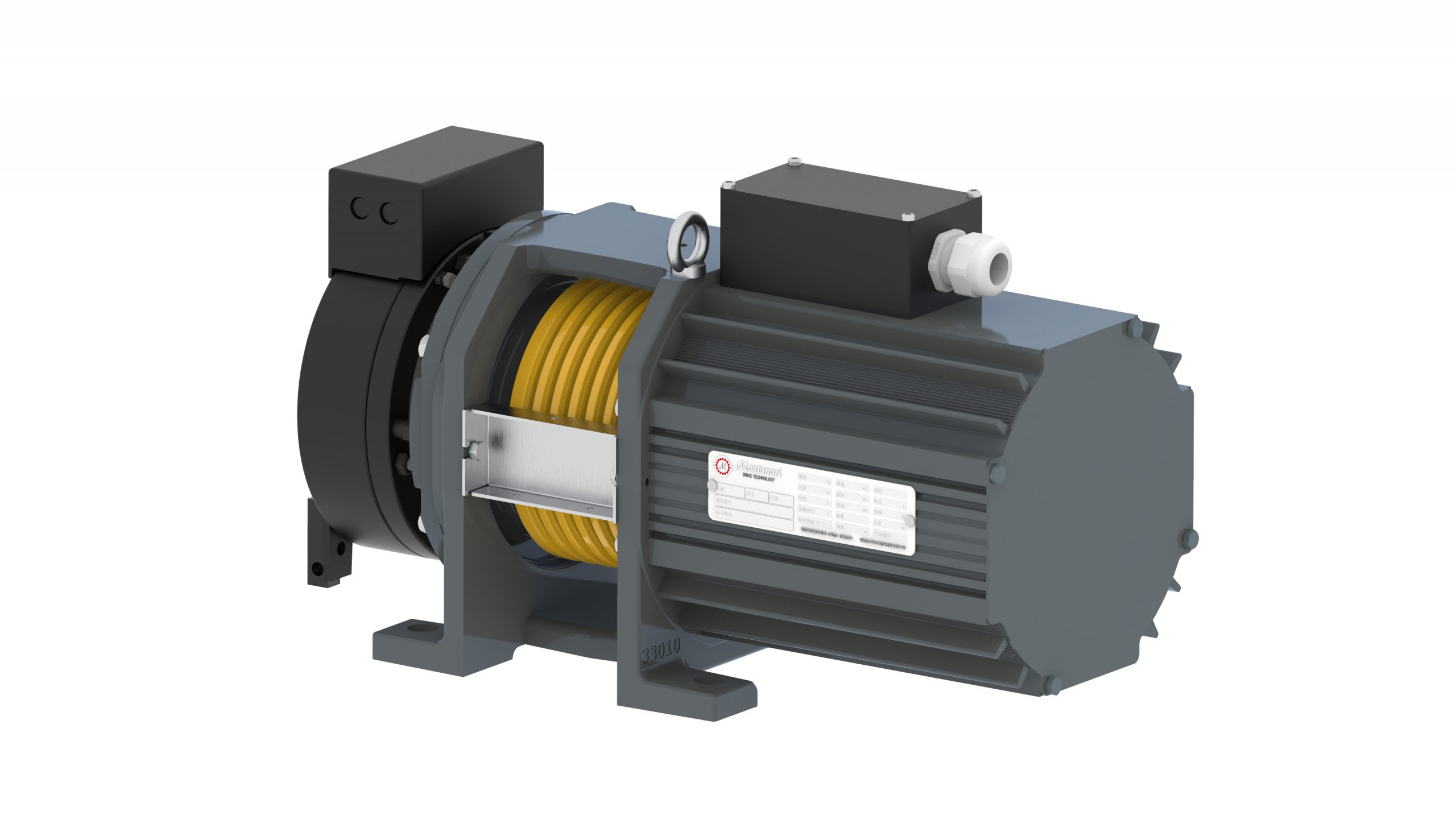

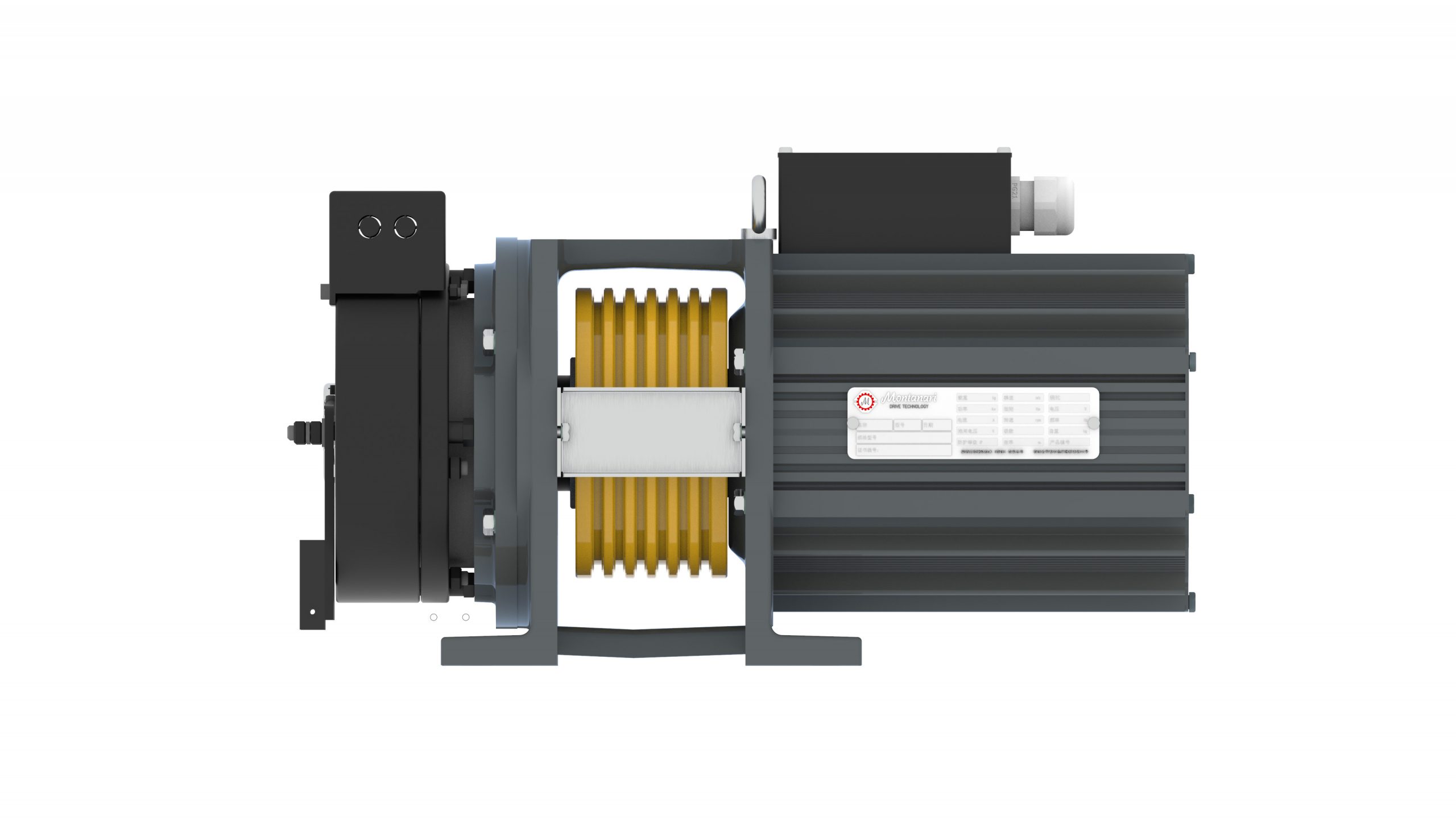

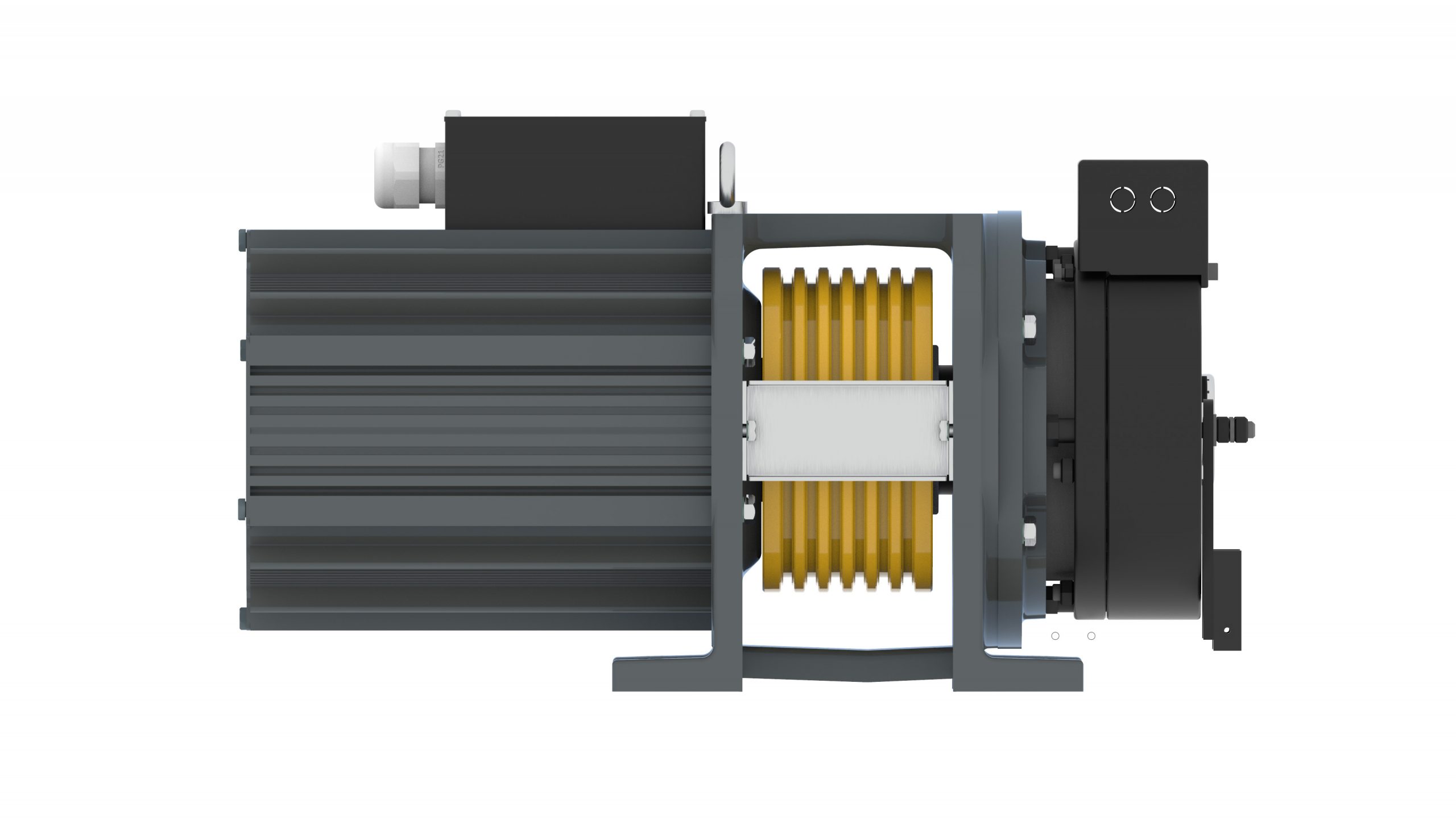

MDQ16H Montanari gearless with permanent magnets is small and suitable for lift installations, lift platforms and Home Lift.

Key features:

• Torque moment: 125 Nm - S5 - 25%Ed - 180 s/h
• Central pulley
• For installations reporting a static load up to 2.000 kg and loads up to 450 kg roping 2:1
• Optional: levers for manual release, power cable and encoder cable. (Special connector on request).

Short circuit torque is always higher than the rated one in order to perform emergency operations in complete safety.

Typical application:

• 2:1 – 320 kg – traction pulley 160 mm
• 2:1 – 400 kg – traction pulley 160 mm
• 2:1 – 450 kg – traction pulley 120 mm
• 1:1 – 320 kg – traction pulley 120 mm
