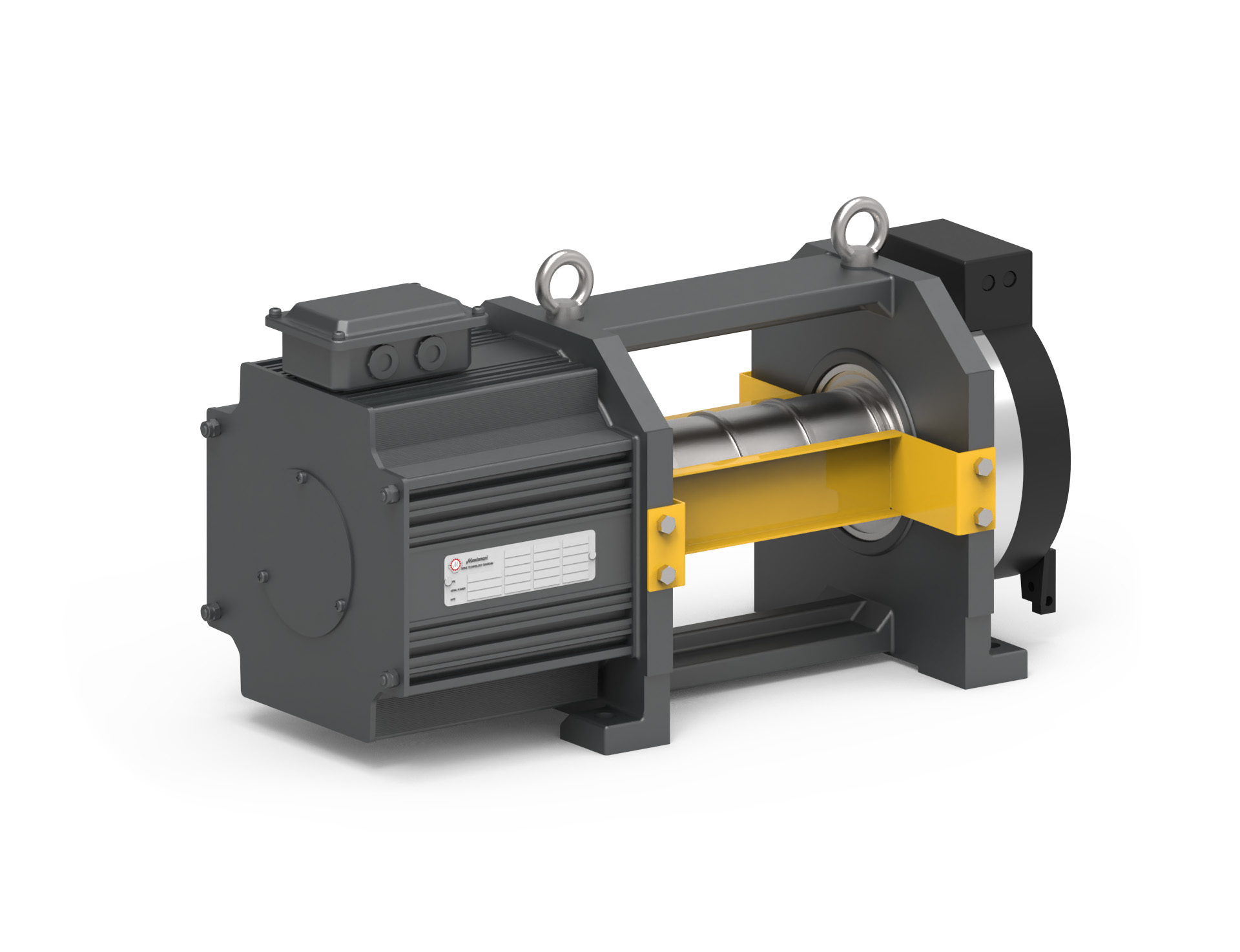

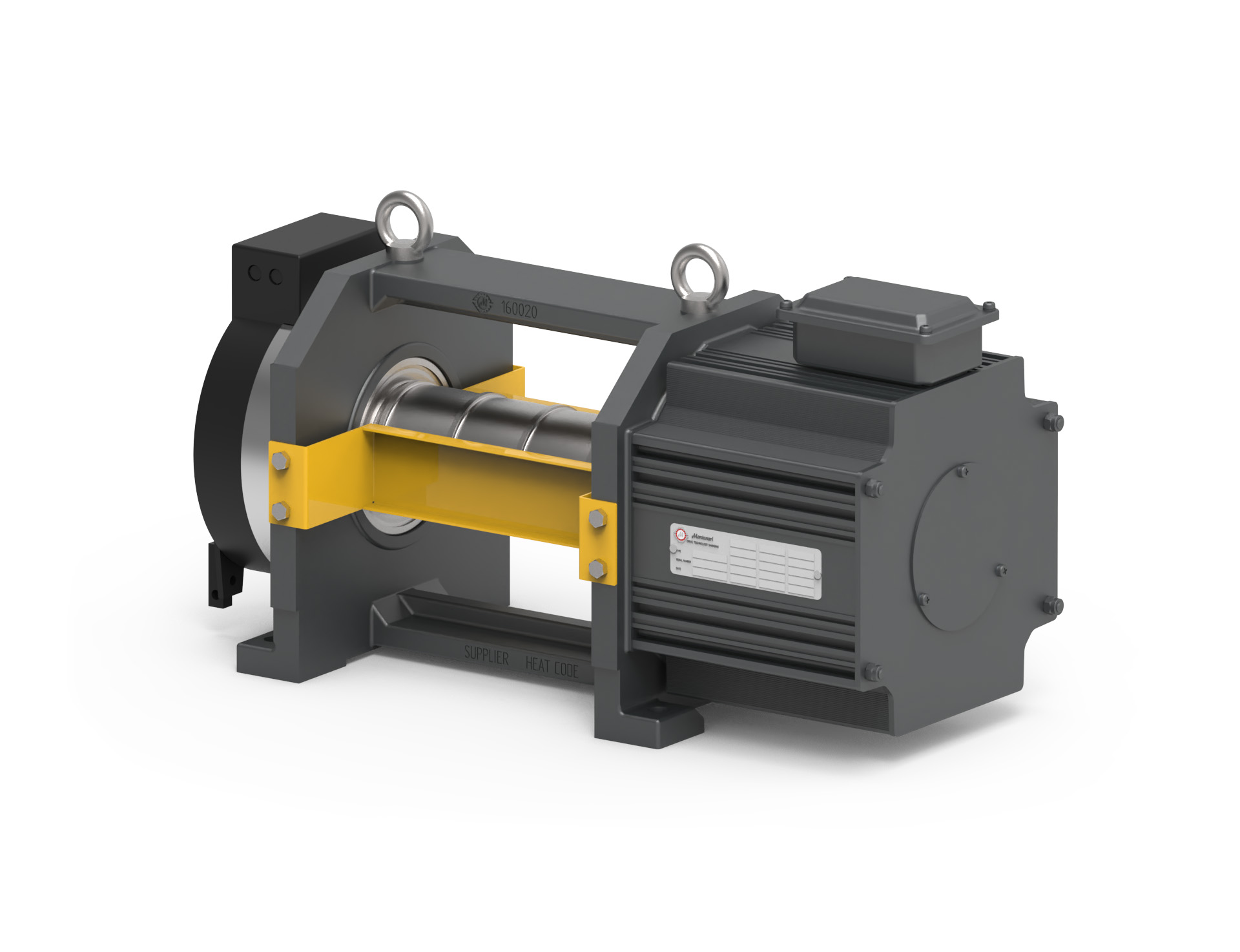

MDG100 – BELT GEARLESS
MDG100 - Montanari gearless is suitable for use in lifts with belt roping system.
Key features:
- Torque moment: 164 Nm - S5 - 40%ED - 180 s/h.
- For installations reporting a static load up to 2.100 kg and load up to 1.000 kg and sheave 100 mm.
- Encoder cable included.
- Optional: brake levers, rescue system and power cable. (Special connector on request).
Short circuit torque is always higher than the rated one in order to perform emergency operations in complete safety.
Typical application:
- 2:1 – 800 kg – traction pulley 100 mm
- 2:1 – 1000 kg – traction pulley 100 mm
Static load: 2100 kg
Capacity:1000 kg
Torque moment: 164 Nm – S5 – 40%ED – 180 s/h
Traction pulley:100 mm
Gearless weight: 140 kg
Voltage: 380 – 220V
Encoder:ERN1387 – ECN1313 – EI53C9.25 – TS5213N2531
