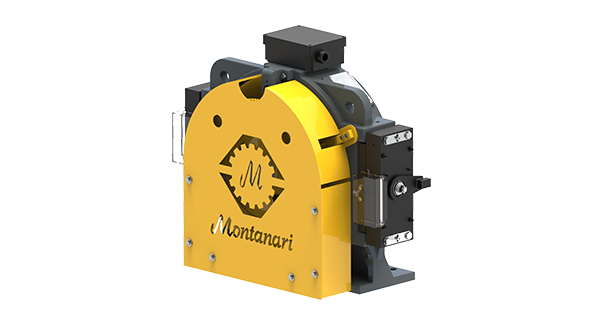

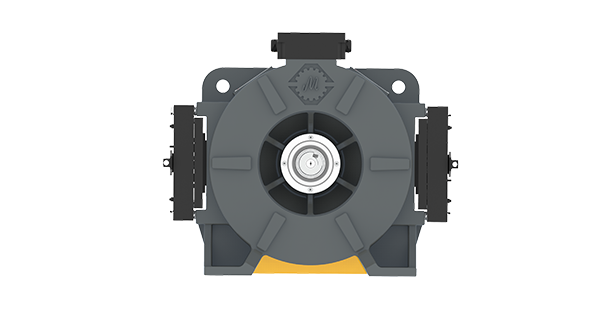

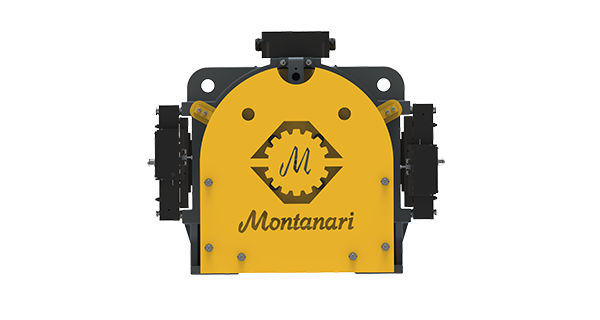

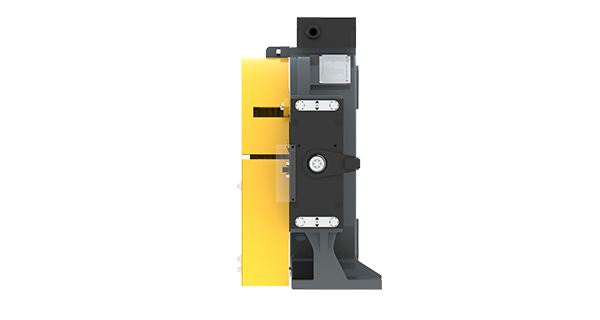

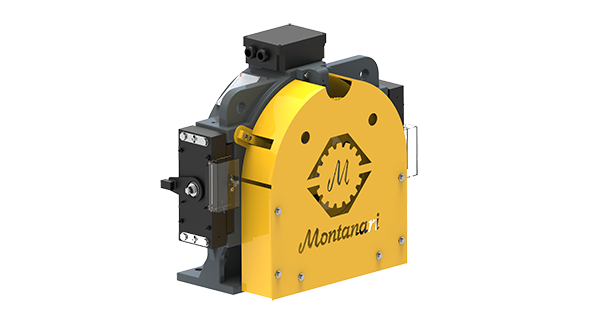

MF200 – FLAT GEARLESS

MF200 Montanari flat gearless with permanent magnets is suitable for MRL and space-constrained installations.

Key features:

• Torque moment: 300 Nm - S5 - 40%ED
• For installations reporting a static load up to 2000 kg and load up to 630 kg max roping 2:1 – 1,75 m/s.
• Optional: remote manual release - 7 or 10 m wire upon requests

Typical application:

• 2:1 – 450 kg – traction pulley 320 mm
• 2:1 – 630 kg – traction pulley 320 mm
